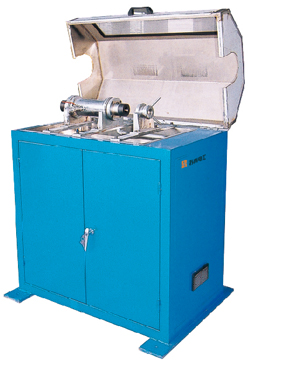

Box-type ointment filling device
  Used for stranded cable SZ cabling and sheathed extrusion before oil filling.
Main technical parameters:
  Paste storage tank volume: about 80 liters
  0.75 KW for the paste system drive motor: communication
  Paste storage tank pressure filling machine: 1.5 KW, ac frequency conversion
Structure and features:
  The device for box type structure. By for paste system and pressure filling ark of two parts.
  For paste system driven by the motor gear pump, the oil of high pressure oil pipe directly to the barrel of oil cream input within the store cream filling inside.
  Pressure filling part of the gear pump, driven by ac frequency conversion motor will paste storage groove filling ointment according to the technological requirements of quantitative injection through the fill tube, cable core filling pipe at both ends is equipped with enclosed paste mode.
  Stainless steel paste storage tank for a pressure circulating system, can conveniently recycling residual oil, clean all
