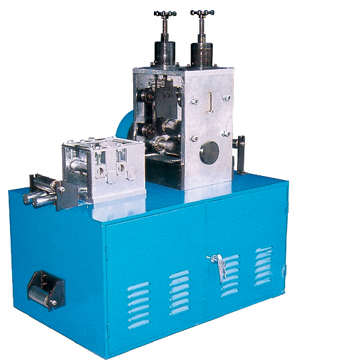

With a corrugated steel (aluminum) device
  Used for optical cable sheath line metal belt longitudinal rolling lines in front of the package
Main technical parameters:
  Corrugated parameters: 0-0.8 mm (adjustable)
  Corrugated pitch: 1.56 mm
  Corrugated speed: 0-60 m/min
  Corrugated width: 150 mm Max
  Corrugated kun materials: 38 crmoalr (nitride processing)
  Motor power: 2.2 KW motor ac frequency conversion speed 1500 RPM
  Horizontal structure. With import and export oriented kun and import and export oriented rolling straight kun.
  Corrugated depth by the handwheel adjustment, is extremely convenient.
  Corrugated kun has on the elastic pressure spring, in case of overload, joint guarantee smooth pass without delay or pulled apart or cause drag mark.
  Through tension controller and host and traction in sync.
