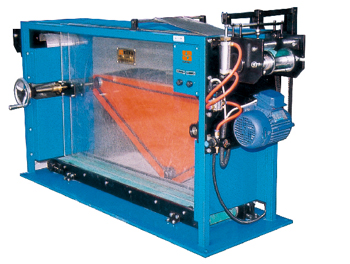

Steel (aluminum) belt storage device
Purpose:
  Used for corrugated longitudinal store with package, for continuous production to replace steel (aluminum).
Main technical parameters:
  Store zone width: 10-120 - mm (manually adjustable)
  The biggest reservoir belt speed: 80 m/min
  Store zone length: 100 mm or more
  Pressure range: 0.1 to 0.6 Mpa
Features:
  Horizontal structure. Sets in, the guide rolling straight gear, and in and out with a rubber guide kun, driven by a separate motor to realize storage zone.
  Storage tank bottom is equipped with steel (aluminum) with electric auxiliary feeding device, to prevent accumulation, to ensure smooth with drawstring.
  neumatic clamping structure, convenient and flexible.
