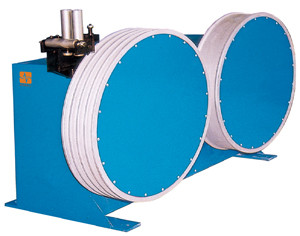

Φ 800 dual wheel tensioning device
    用途:
  Used for optical fiber cable or cable core strengthening core of constant tension pay-off, as the whole production line supporting parts.
Main technical parameters:
  Tension wheel diameter: Φ 800 mm (double)
  Tension control methods: magnetic powder brake control.
  Tension control: 5 ~ 200 n (instantaneous adjustable)
Structure and features:
  The device is horizontal structure. Respectively with two Φ 800 line tension of casting wheel and the driven wheel.
  Controlled by magnetic powder brake, tension can be achieved by adjusting the current of magnetic powder brake, and instantaneous control online.
  This device tension adjusting range is wide, stable and reliable work.
