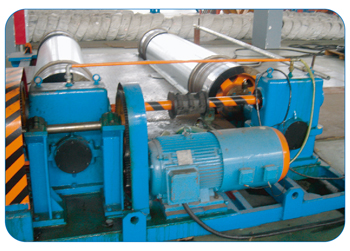

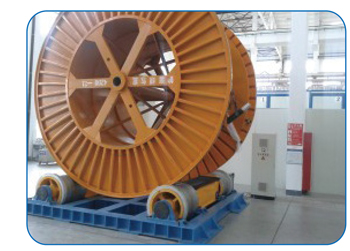

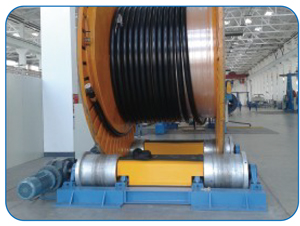

Φ5000 to roll up machine
Equipment use:
   ■ Mainly used in the market, big diameter of cable winding into a dish, can also be used for cable packing for final delivery.
Structure features:
   ■ 1.the big drum surface hardening treatment, excellent durability
   ■ 2.double roller, drive torque is big
   ■ 3.frequency conversion motor or dc motor speed regulation, smooth operation, front row line frequency conversion motor lead screw type, stable and reliable.
Main technical parameters:
   The range of the coil specification:
   PN3150 ~ 5000
   The range of the coil width: 2300 ~ 3500
   Drum diameter: Φ 600 mm
   Closed linear velocity: 0 ~ 20 m/min
   Capacity: < 60 t
