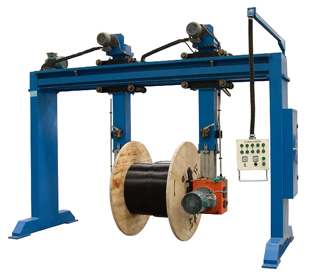

Φ1600~Φ2500Single Column double girder gantry hanging close row, line planes
Equipment use:
   ■ Mainly used for all kinds of signal cable, optical cable winding into a plate.
Structure features:
   ■ 1. Rectangular pipe rack is made of high quality welding, beam adopts two large beams connected combined institutions, beautiful appearance, good rigidity, high strength
  ■ 2. Adopts walking beam method, cable tray for whole row line movement, the implementation of pay-off and take-up
  ■ 3. The ribbon cable wiring, adopting ac frequency conversion motor, high precision and uniform row line
  ■ 4. With all kinds of PLC programmable controller, the host from spreading
  ■ 5. Take-up main motor
    A. take-up main motor adopts dc speed regulating motor, controller for continental series products
    B. the line main motor adopts frequency conversion motor, controller of Siemens or danfoss series products

Main technical parameters

Model specification

630/1600
800/2000
1250/2500

Coil specification shall apply

PN630-PN1600
PN800-PN2000
PN1250-PN2500

Applicable to cable diameter (mm)

≤40
≤60
≤80

Coil diamete(mm)

Φ630-Φ1600
Φ800-Φ2000
Φ1000-Φ2500

Apply coil width(mm)

475-1180
600-1500
750-1900

Closed linear velocity (mm/min)

≤120
≤100
≤80

Ribbon cable precision (%)

1-2%
1-2%
1-2%

Bearing capacity (t)

4
4.5
6
