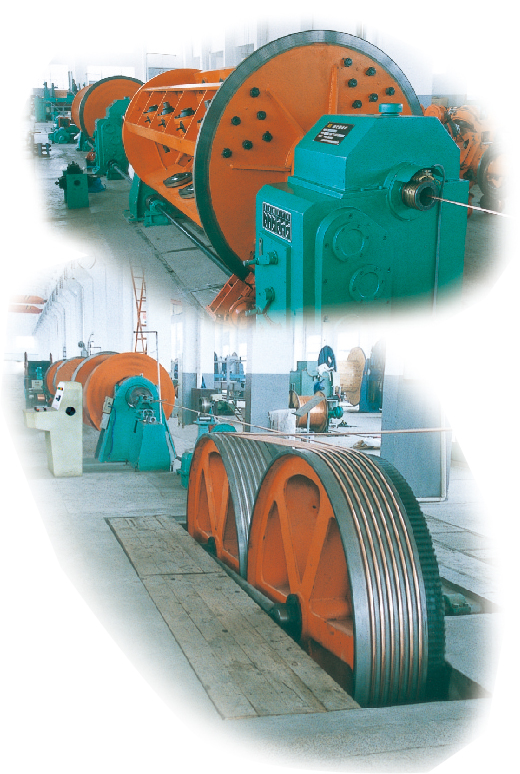

Box-type stranding machine
Purpose:
  ■ This equipment is mainly used for bare aluminum wire, bare copper wire, the steel core aluminum stranded wire and power cable with conductor sector, circular press conductor stranding or "drawing press" way of ground production system.
Features:
  ■ The equipment of the coil is fourth packing clip on the twister frame, central axis line plate of gravity, so the equipment large rigidity, high strength, strong integrity, moment of inertia of small, high running speed.
  ■ Stepless speed changing twister tooth box is six plus positive and reverse; Traction USES level 36 transmission with double double active structure, wide speed range, traction, suitable for "tight" way to process the production.
  ■ Wheel traction line adopts the international advanced natural type line, effectively avoid the stranded conductor in a stranded conductor in twisted process of scratch, rolling, and loose strands.
  ■ The equipment adopts the spray type is wheel box and smooth, flat clip-on pneumatic brake, stranded conductor pre-forming, unique wire parking, alarm systems, pneumatic tool tightly on the plate body, electronic meter counter etc design first.
  ■ Main motor selects the new generation of Z4 series dc motor drive, advanced full digital dc drive and PLC programmable controller control, ensure the machine running smoothly, easily manipulated. Especially with large cross-section cross-linked cable production of tight wire core.


Main technical parameters

serial number

project

parameters
The type 500
The type 630

1

Twisted single wire diameter(mm2)
Copper:Φ1.2-4.5;Aluminum:Φ1.8-5;Aluminum:Φ1.2-4.5

2

Twisted the largest cross-section (drawing press)(mm)
Copper:500;Aluminum:630
Copper:630;Aluminum:800

3

Grinding cage speed(Level 6 speed)(rpm)
63~147
43~156

4

Stranding pitch(earth's axis transmission)(mm)
60.93~1077.93
38~1070

5

Traction line wheel diameter(mm)
Φ2000Double, double the initiative
Φ2500Double, double the initiative

6

Traction linear velocity(m/min)
8.97~68.2
6~45.6

7

In steel frame specifications(mm)
PND500
PND630

8

Center of the steel specifications(mm)
PN800~1600
PN800~1600
9
Closed coil specification(mm)
PN1600~2500
PN1600~2500
10
Main motor power(kw)
Z4 90 1500
Z4 132 1500
11
Equipment machine power(kw)
about110
about182
12
Equipment center high(mm)
1000
1100
13
The total weight of equipment(t)
50
82
14
equipment overall dimensions (m)(length x width x height)
40×5×2.2
43×7×3
