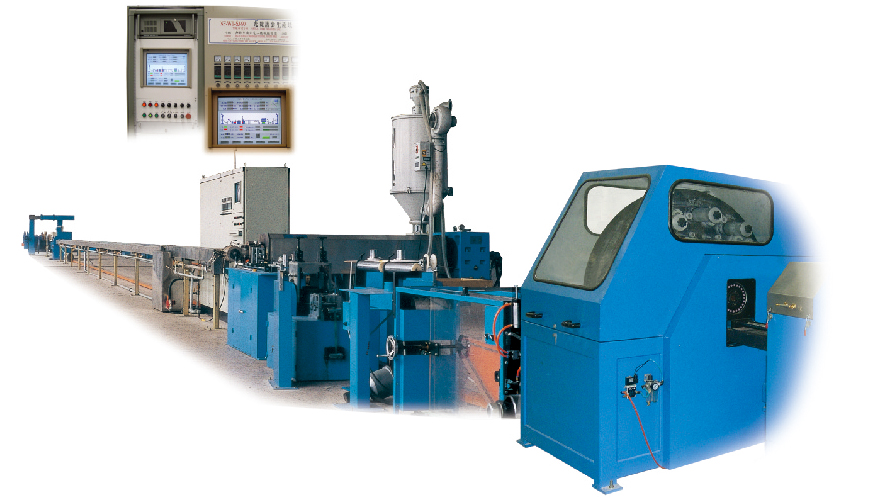

■ Equipment use:
■ This equipment can be used for loose tube oil filled CengJiaoShi production of internal and external sheath of optical cable. At the same time can also be used for parallel twin wire center tube optical cable and (ADSS) all medium ZiChengShi extrusion production of aerial optical cable.
■ Main technical parameters:
■ Core diameter: Ф 30 out of outside diameter (mm) : 3.0 ~ 5.0 ~ 35 Ф (mm) production line speed: Max60m/min
■ Extruder: SJ10 x 25, (BM screw), 350 kg/h
Z4 dc motor, 110 kw, 1500 RPM
SJ10 x 25, (BM screw), 250 kg/h
Z4 dc motor, 90 kw, 1500 RPM (ADSS) spinning nylon yarn regiment Numbers: 2 x 24 regiment
■ Spinning nylon yarn regiment release tension, 3-30 N + / - 1.5 N (using mitsubishi magnetic powder brake)
■ Tractor: TQD800kg pneumatic crawler tractors
■ Equipment configuration complete, reasonable, and the main parts adopt imported components or joint products, advanced structure, good appearance, easy to use.
■ Special configuration of 2 x 24 aramid fiber twister, for production (ADSS) optical cables, which can realize multi-usage.
■ Use of single column double beam overhead suspension motorized, stable and reliable performance. Special Φ 800 double store line tension controller, effectively prevent the pay-off tension instability, in the process of the cable core is damage to the wire core.
■ The whole machine adopts PLC programmable controller and industrial computer (PC) joint control, main parameters in the industrial computer screen and set, human-machine interface, be clear at a glance and easily manipulated. With power off memory and storage function, fault display and alarm, etc., can easily call or store ? production workers
