CCV / VCV crosslinked line domestic support
Equipment use:
  Mainly for imports (TROESTER, MAILEFER) 110Kv/CCV, 500Kv/VCV XLPE cable production line domestic support.

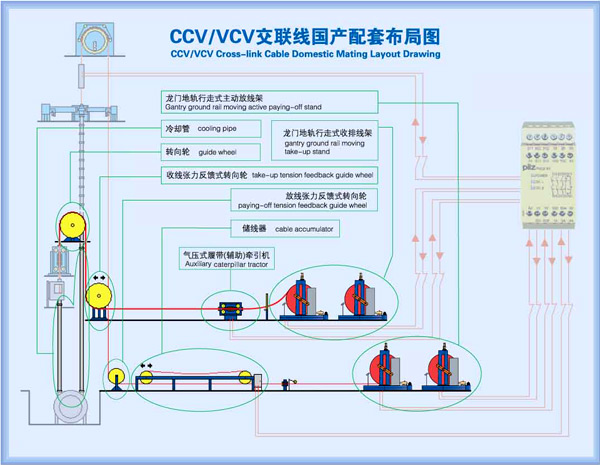

Device configuration:
  Gantry ground rail moving active off stand - off tension feedback steering wheel - Chu thread - Pneumatic Crawler ( auxiliary ) tractor - up tension feedback steering wheel - steering wheel - gantry ground rail moving to cable

Structural features:
1. Gantry ground rail moving active line planes

Structure: Single- column type , double column type , "A" -type structur
      SRE casing, casing under the home
Specifications: LSP2500-3500 gantry rail of walking type motorized (single column)
 LSP3500 walking - 5000 gantry rail type of active motorized (double column)
 ALSP2500-5000 "A" type gantry rail of walking type active motorized)
Electric control: PC control signal through the ET - 200 (profibus) sent motorized instructions, such as motorized start, stop, are turning inversion, etc., pay-off stand will also be some operation instructions and fault through the ET - 200 (profibus) up a machine transmission, makes the production line fully automated operation, and operators in the upper machine can directly control and monitoring of motorized running and running.
